GPS LOCATION BASED PUBLIC ADDRESS & PASSENGER INFORMATION SYSTEM AND LED DESTINATION BOARDS IN LHB TYPE AC AND NON-AC COACHES. Spec. No. RDSO/CG-18001

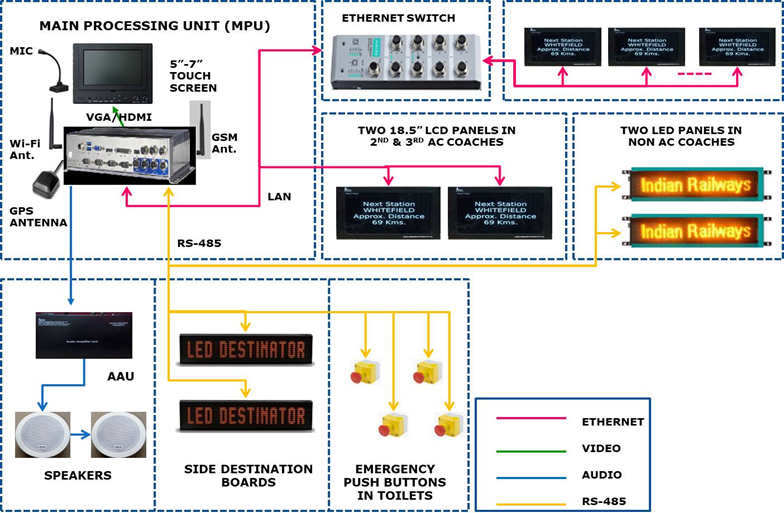

Passenger address system along with passenger information system and LED destination board shall be integrated for providing all important information in audio and visual form to the passengers.
The system equipped with GPS technology for activating location based audio visual information and features of the system like speed, location of the coach and calculating kilometer run by the coach on per day/month/year basis.
This system cover the general functional design requirements of such system for Indian Railway coaches. System supports key features and technology based on internet services through Quad band GSM/GPRS or HSDPA/HSUPA modem and through Wi-Fi connectivity to the base station for remote accessibility of the system and monitoring of important parameters.
Main Processing Unit
Main Processing Unit is a Compact Fanless industrial grade PC with IP65 compliant enclosure unit along with panel mount IP65 compliant external touch screen display and comply with EN50155 or IEC 60571 standards.
MPU shall process the GPS data (Latitude, Longitude, Date and Time) on real time basis and detect its presence on the train route automatically and perform calculation for initiation of triggering command for audio/ visual data for PAS and PIS LCD display unit or PIS LED display units.
Slave LED Destination Board Display System
Slave LED Destination Display unit is mounted preferably sunk type and should be IP65 compliance with 1.2 mm thickness of robust stainless steel Out Side of the coach, Display unit of 16 X 128 LED with auto brightness control module. To display Train Name, Destination of the train, Train route (via), Welcome Message.
Slave PIS LED Display System
Slave LED Display System Unit is mounted inside the coach shall be designed with suitable antitheft and anti-vandal protection mounting arrangement inside the coach.
Display Size: 16 X 112 SMD type LED at 5 mm pitch
Display Area 560mm X 80 mm
IP65 compliant enclosure
Display the messages like
Slave PIS LCD Display System
Slave LCD Display System Unit is 19.0 inch ( 10 inch for 1st AC coupe) in 16:9 ratio with suitable antitheft and anti-vandal protection mounting arrangement inside the coach.
